You have more problems in steelmaking because raw materials are harder to get. Recycling a slide gate plate lets you save money and help the earth. This process keeps important resources being used, which helps a circular economy. When you recycle, you make less waste and lower your effect on the environment. Every time you recycle, it helps your company and the planet.
Key Takeaways
- Recycling slide gate plates helps save money. It lowers material costs. Pick recycled plates to spend less. You can also order more plates for less money.
- Recycling is good for the environment. It cuts down on waste and pollution. It saves natural resources. It also reduces greenhouse gases.
- To start a recycling program, you need training. You must have clear steps for everyone. Teach your team how to sort materials. Make sure they know how to collect them.
- Being part of a circular economy helps your business. It also helps the planet. Use materials again to make new things. This keeps waste low.
- Begin recycling now to work better and help the earth. Use easy steps to add recycling to your work.
Slide Gate Plate Overview
What Is a Slide Gate Plate

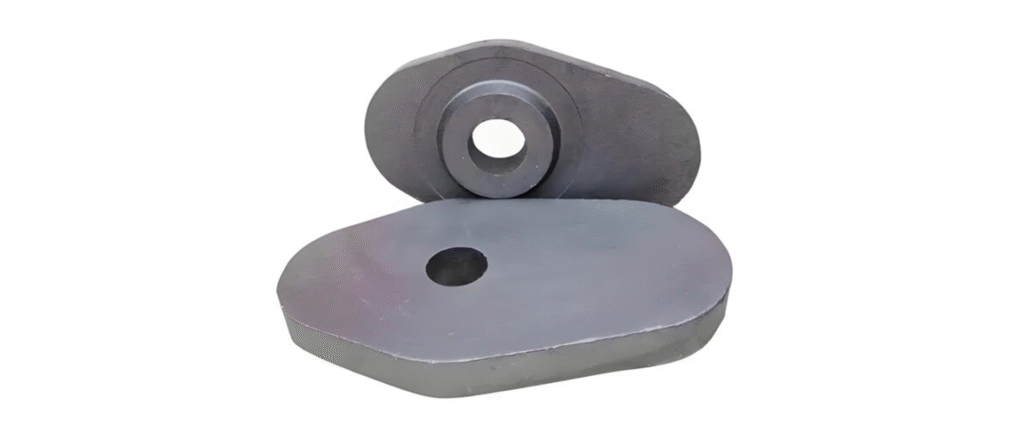

A slide gate plate helps control molten steel flow. It sits at the bottom of a ladle or tundish. You move the plate to start or stop steel flow. This lets you be very precise. The slide gate plate faces high heat and pressure. It needs to be strong and dependable.
Note: The material you pick for a slide gate plate changes how well it works and how long it lasts. Here is a table that lists the main materials and what they do:
| Material Type | Key Properties | Applications |
|---|---|---|
| Alumina-Carbon | High refractoriness, excellent thermal shock resistance | Widely used in steel industry |
| Magnesia-Carbon | High basicity, good thermal shock resistance, resistant to basic slags | Used in ladle operations with basic slags |
| Zirconia-based | Excellent corrosion resistance, mechanical strength at high temperatures | High-grade steel production, non-ferrous smelting |
| Spinel-based | Good thermal stability, resistance to chemical attack | Tailored for specific applications |
Each material has its own special benefits. You choose based on the steel you make and your plant’s needs.
Importance in Steelmaking
A slide gate plate is very important in steelmaking. You need it for many reasons:
- You can control molten steel flow. This helps keep steel quality high.
- You pour steel accurately, so you waste less and avoid spills.
- You make your workplace safer. The plate helps stop accidents and leaks.
- You work faster and better because the plate makes handling easier.

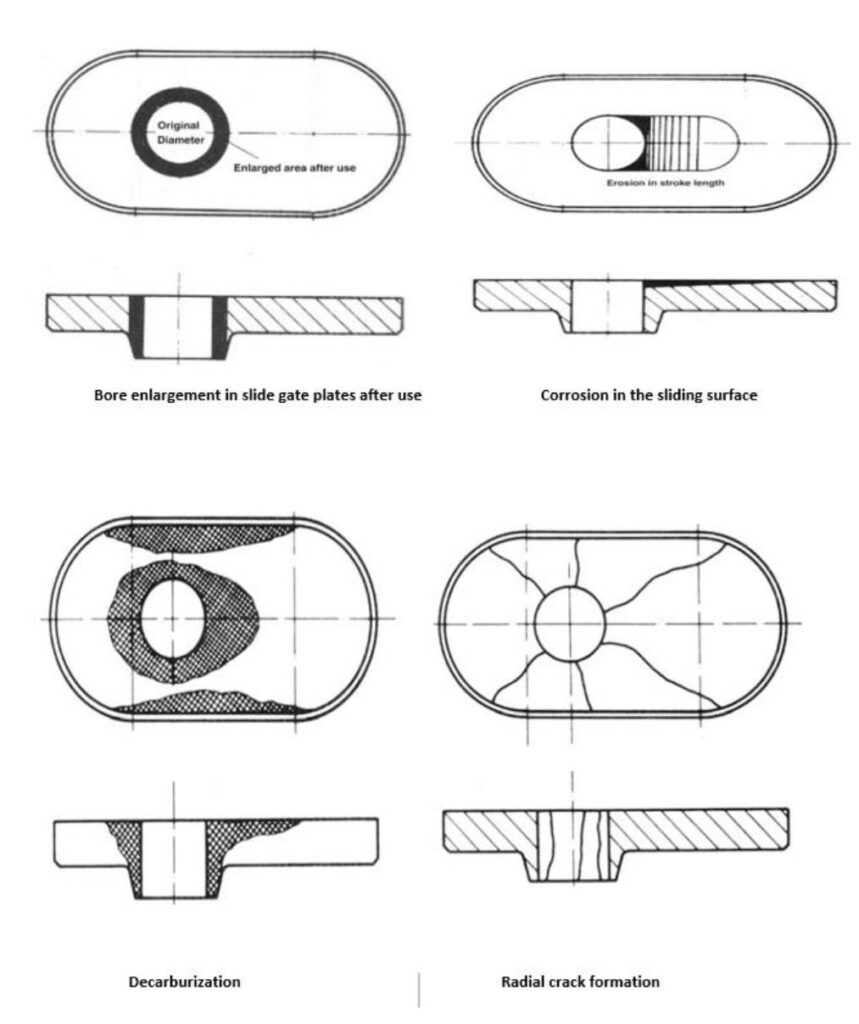

If a slide gate plate breaks, big problems can happen. Steel might leak, causing loss and safety issues. If the plate wears out or gets damaged, gaps can form and leaks may happen. Using a good slide gate plate keeps your steelmaking safe and high-quality.
Cost Savings
Lower Material Expenses
You can lower your material expenses by recycling slide gate plates. When you choose recycled plates, you pay less for each unit. New plates cost more because they use raw materials that are hard to find. Recycled plates use materials from old plates, so the price drops.
Here is a simple comparison:
| Type of Plate | Price per Unit | Case Quantity | Total Price |
|---|---|---|---|
| Newly Manufactured Slide Gate | $10.00 | 5 | $100.00 |
| Recycled Slide Gate Plate (Used) | $4.50 | 18 | $81.00 |
You see that recycled plates cost less per unit. You also get more plates for less money. This helps you save on every order. Over time, these savings add up and help your company stay competitive.
Reduced Disposal Costs
Recycling also helps you spend less on waste disposal. When you throw away used plates, you pay for removal and landfill fees. These costs can grow quickly, especially if you use many plates each month. By recycling, you keep more waste out of landfills. You also avoid extra charges for hazardous waste.
Recycling means you turn old plates into new ones. You do not just throw them away. This keeps your costs low and helps the environment at the same time.
When you recycle, you make your business more efficient. You use fewer resources and spend less on waste. This makes your operation smarter and more sustainable.
Waste Reduction
Environmental Benefits
Recycling used materials helps the environment. When you recycle a slide gate plate, less waste goes to landfills. You also do not need as many new raw materials. This saves natural resources. Factories do not have to process as much new material, so there is less air and water pollution.
Recycling lowers greenhouse gas emissions. Making new products uses more energy than recycling. This helps slow down climate change. Every time you recycle, you help the earth.
Recycling also keeps your workplace cleaner. With less waste, there are fewer storage issues. Work areas are safer. You show your community you care about the planet.
Circular Economy Impact
Recycling is important for the circular economy. In this system, materials are used again and again. You do not throw things away after one use. Old products become new ones. This helps both your business and the environment.
- Recycling slide gate plates turns waste into something useful.
- This means you do not need as many new materials.
- It helps the environment and supports sustainability.
When you recycle, your company is more sustainable. You save money and resources. The circular economy helps you get more from every material. You help make the future better for everyone.
Slide Gate Plate Recycling Process
Collection and Sorting
You begin by gathering used slide gate plates at your steel plant. Workers collect these plates after each production run. You must sort the plates carefully. Some plates are more worn than others. You separate plates with lots of damage from plates that can be reused. Sorting helps you find the best materials for recycling. You use machines to tell slag from good material. Some plants use color and air to split slag from the plate. This step makes sure you recycle only the right parts.
Recycling is very important because you cannot make new raw material for slide gate plates anymore. You need to reuse what you have to save money and help the earth.
Crushing and Reuse
After sorting, you crush the slide gate plates into small pieces. Machines use force to break the plates down. You want the pieces to be smaller than 20 mm. Small pieces are easier to clean and process.
You follow steps to get the recycled material ready for new plates. Here is a table that shows how you process the material:
| Step | Description |
|---|---|
| 1 | Separate the base plate and nozzle from the slide gate materials. |
| 2 | Take out refractory materials from the steel parts of the nozzle and base plate. |
| 3 | Clean, granulate, decontaminate, screen, and bag the refractory materials as customers want. |
| 4 | Send steel straight to steel mills for melting. |
You clean and break up the refractory material. You remove dirt and check the pieces to fit what customers need. You put the finished material in bags for new slide gate plates. Steel parts go to the mill to be melted and used again.
In 2020, steelmaking companies recycled 750 metric tonnes of slide gate plates. This shows the industry is making progress. You help save resources and cut waste every time you recycle.
- You spend less money.
- You help the environment.
- You support a circular economy.
Recycling slide gate plates keeps your business strong and helps the planet.
Implementation and Challenges
Common Obstacles
You might have problems when you start recycling at your steel plant. Sometimes, workers do not know how to sort or collect used materials. Old habits can make it tough to change what people do every day. It can also be hard to keep recycled materials clean and free from other trash. Some companies worry about spending money on new equipment or training. If you do not have a clear plan, recycling can feel confusing.
Many companies also have trouble keeping workers interested in recycling. If you do not remind people often, they might forget what to do.
Solutions and Best Practices
You can solve these problems with the right steps. First, give your team good training. Training helps everyone learn the program and do the right things. This means you get better results and less waste. You can use webinars, slide decks, and presentations to teach your team. These tools make learning simple and help everyone understand.
- Webinars like the ‘Waste to Resources Webinar’ series give helpful advice.
- PowerPoint presentations can explain how recycling works.
- Training slides show your team the goals and steps for recycling.
You should also have kick-off events to get people excited. Give regular updates and training to keep recycling in everyone’s mind. Add recycling lessons to new employee training. This way, everyone knows what to do from the start.
Getting Started
You can start your slide gate plate recycling program with a few easy steps:
- Collect steel scrap from places like home scraps, industrial scraps, and old scraps.
- Sort the scrap to take out anything that does not belong and make sure it is clean.
- Teach your team using the learning tools you have.
- Set up clear places in your plant for collecting scrap.
- Watch how things are going and tell your team how they are doing.
When you do these steps, recycling becomes part of your company’s way of working. You save money, make less waste, and help the earth.
Recycling slide gate plates gives you real savings and helps protect the environment. You use fewer raw materials and cut down on waste. The need for recycling grows every day. Look at these facts:
- Only 33% of ferrous metals get recycled, even though recycling can cut carbon emissions by up to 73%.
- Recycling rates for plastics are just 8.7%, showing a big gap in recycling efforts.
Start recycling now. You help your company and the planet at the same time.
FAQ
What materials can you recycle from slide gate plates?
You can recycle refractory materials like alumina-carbon and magnesia-carbon. You can also recycle steel parts. These materials help make new slide gate plates. Recycling these materials helps you make less waste.
How does recycling slide gate plates save money?
You spend less money on new raw materials. You also pay less for getting rid of waste. Recycling helps lower your costs. It helps your business stay strong.
Can you use recycled materials for all types of steelmaking?
You can use recycled materials in most steelmaking jobs. You should always check the quality first. Make sure the recycled material fits your plant’s needs.
What steps should you take to start recycling slide gate plates?
First, collect used plates and sort them. Train your team so they know what to do. Set up clear places for collecting plates. Track your progress to make your recycling better.
Why is recycling important for the environment?
Recycling keeps waste out of landfills. It saves natural resources. You help cut down pollution. Recycling supports a cleaner and healthier planet.
